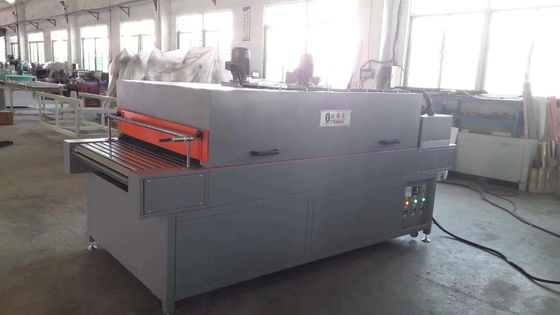

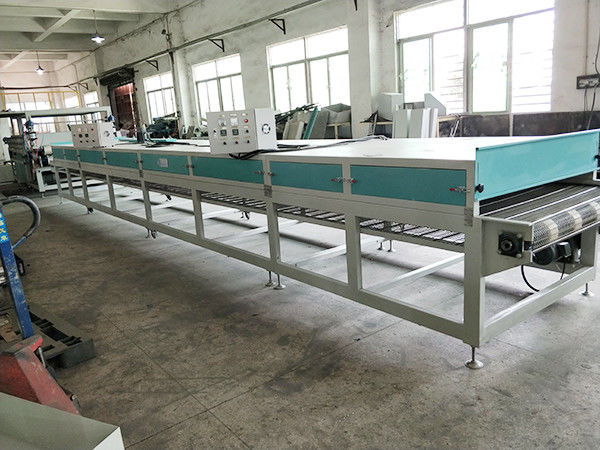

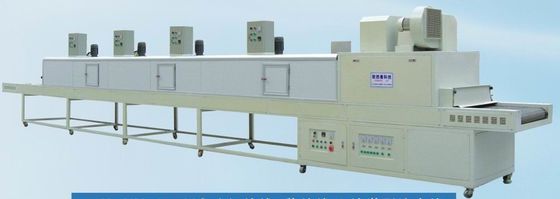

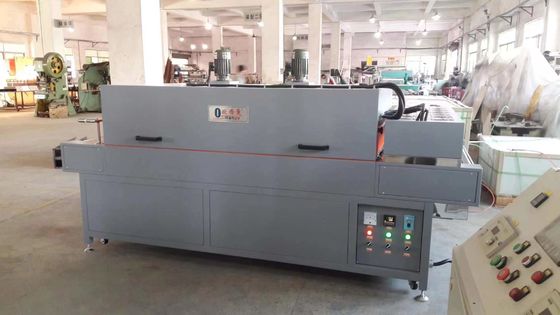

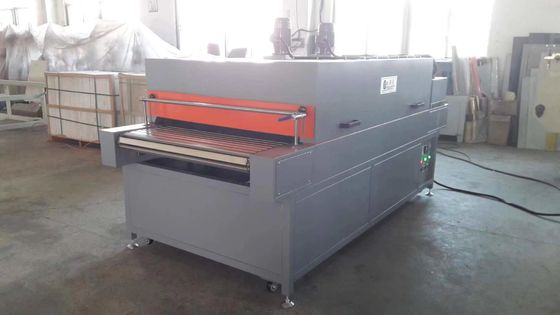

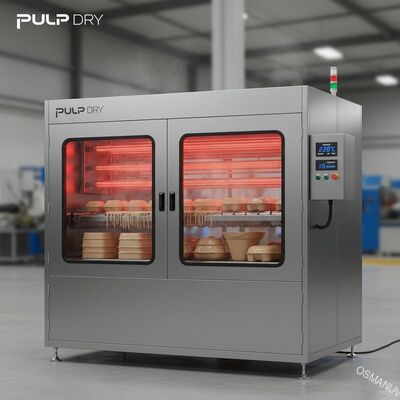

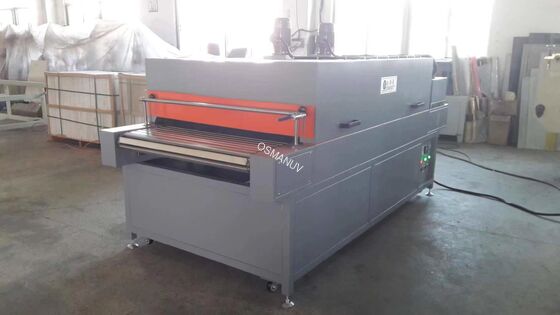

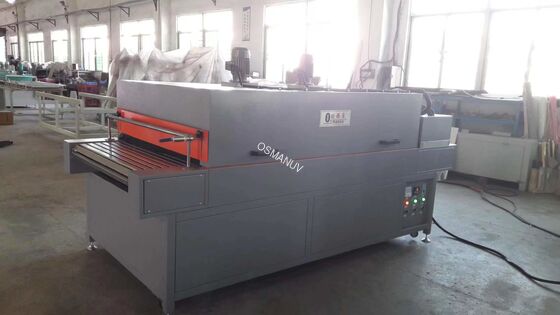

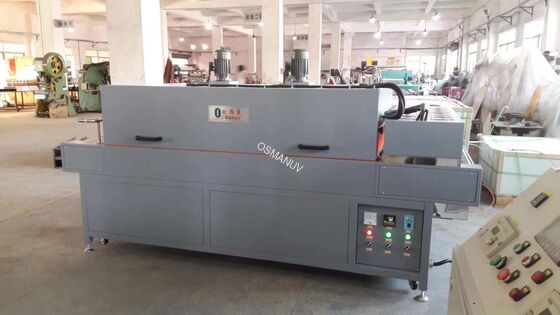

High-Speed Infrared Drying Machine for Rapid Curing of Coatings on Pulp Molded Products
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | OSMANUV |
| Chứng nhận: | ISO9001 |
| Số mô hình: | OSM-IR-1320 |
| Tài liệu: | 5 Meters IR Drying Machine.pdf |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | negotiable |
| chi tiết đóng gói: | Bao bì gỗ |
| Thời gian giao hàng: | 30 ngày |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | Đàm phán |
|
Thông tin chi tiết |
|||
| Điện áp: | 220V, 380V, 380V/220V, 220V/380V, 380V/50Hz | Tình trạng: | Mới |
|---|---|---|---|
| Loại điều khiển: | Điện, khác, cơ học | Vật liệu đóng gói: | Gỗ, nhựa, kim loại, giấy, thủy tinh |
| Loại đóng gói: | Trường hợp, thùng giấy, phim, gói Wooder, túi | Bảo hành: | 1 năm |
| Quyền lực: | 3kW, 16kW, 65,3kW, 4.2kW, 0,75kW/220V/50Hz | ||
| Làm nổi bật: | infrared drying machine for coatings,high-speed pulp molding dryer,industrial curing machine with warranty |
||
Mô tả sản phẩm
High-Speed Infrared Drying Machine for Rapid Curing of Coatings on Pulp Molded Products
Product Description
Our high-speed infrared drying machine is engineered to significantly reduce curing times in your production line. By utilizing precisely controlled medium-wave infrared emitters, it delivers instant, penetrating heat to quickly dry and cure water-based coatings on pulp molded products. This results in faster line speeds, reduced energy consumption, and a smaller factory footprint. The machine's length and power are fully customizable to meet your specific production throughput and product requirements.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-IR-1320 |
| Heating Technology | Medium-Wave Infrared Ceramic Emitters |
| Power Supply | 380V / 50Hz (or customizable) |
| Total Power | 36-120 kW (adjustable in zones) |
| Drying Tunnel Length | 3m, 6m, 9m standard (Fully customizable) |
| Belt Width | 1320mm standard (Customizable) |
| Temperature Range | 50°C - 400°C (programmable) |
| Control System | PLC + Touch Screen HMI with recipe storage |
| Cooling Section | Optional forced air cooling available |
Application
-
Rapid drying of coatings on paper trays, sugarcane bagasse food containers, and bamboo fiber tableware.
-
Curing of inks and adhesives on packaging materials.
-
Pre-drying before a final convection drying stage.
Feature
-
Instant On/Off Heat: No warm-up or cool-down time, ideal for intermittent production.
-
Zone Control: Independent temperature control in multiple zones for optimized drying profile.
-
Energy Efficient: Infrared energy transfers directly to the product and coating, minimizing heat loss.
-
Uniform Heating: Ensures consistent product quality without hot spots.
Customization
This drying machine is highly customizable. Key options include:
-
Length and Power: Tailored to your required drying time and line speed.
-
Belt Material: Choice of mesh, teflon-coated, or steel belt.
-
Exhaust System: Integrated exhaust for moisture removal.
Support and Services
We provide installation guidance, operational training, and a comprehensive spare parts list to ensure maximum uptime.
Packing and Shipping
The machine is modularized into sections for easy transport. All sections are crated in robust wooden frames for secure shipping.
FAQ
-
Q: How much faster is infrared drying compared to conventional hot air ovens?
-
A: Drying times can be reduced by up to 50-70% because IR energy heats the product directly, not the surrounding air.
-
-
Q: Can the temperature be controlled for different products?
-
A: Yes, the PLC allows you to save different temperature profiles for quick changeover between products.
-
