Spot UV Curing Machine for Selective Area Curing | High Flexibility
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Osmanuv |
| Chứng nhận: | ISO9001 |
| Số mô hình: | OSM-UV-620 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | negotiable |
| chi tiết đóng gói: | Hộp gỗ |
| Thời gian giao hàng: | 30~45 ngày |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | Đàm phán |
|
Thông tin chi tiết |
|||
| Chức năng: | Máy sấy mực UV | Kích thước tổng thể: | 1900/1530/1410mm |
|---|---|---|---|
| Kiểu in: | Máy in kỹ thuật số | Nguồn gốc: | Trung Quốc |
| Điện áp: | 220v | Vật liệu phủ: | sơn bóng UV |
| Khu vực ứng dụng: | In lụa bằng mực UV | Loại tấm: | máy xử lý bằng tia UV |
| Làm nổi bật: | spot UV curing machine for selective area,UV curing machine with high flexibility,selective UV curing machine with warranty |
||
Mô tả sản phẩm
Spot UV Curing Machine for Selective Area Curing | High Flexibility
1. Composition of Production Line

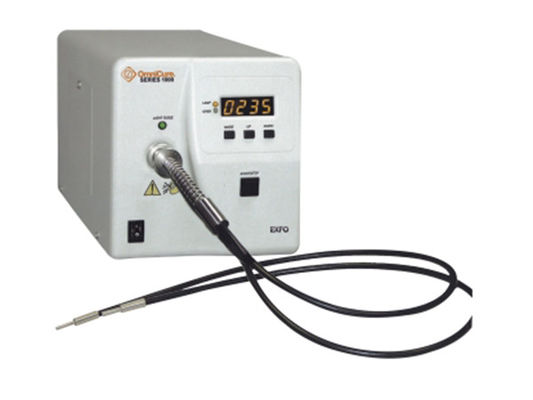

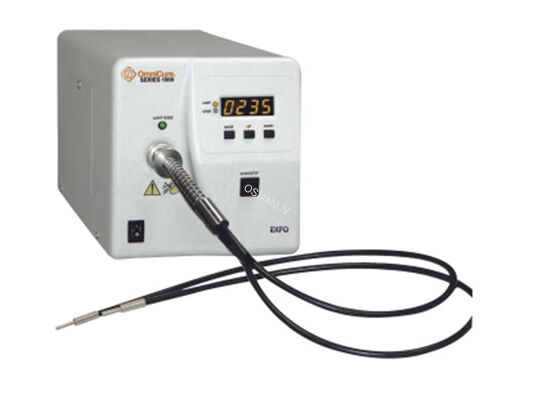

This flexible setup typically includes: a manual or automated positioning stage, a spot UV curing lamp head (with light guide), a benchtop power supply and control unit, and a fume extractor (optional).
2. Product Description
This spot curing machine is designed for precision curing in selective areas on electronic components, such as fixing specific components, bonding wires, or repairing coatings. It delivers a focused, high-intensity beam of UV light for fast and localized curing without affecting surrounding areas.
3. Technical Parameters
| Parameter | Details |
|---|---|
| Model | UV-SPOT50 (Standard Model, Customizable) |
| UV Source | Mercury Vapor Lamp / LED (Customizable) |
| Spot Size | 3mm - 15mm in diameter (via light guides, Customizable) |
| UV Intensity | Up to 8000 mW/cm² (Adjustable) |
| Curing Cycle | 0.1 - 999.9 seconds (Digital Timer) |
| Lamp Lifespan | 1000 hours (Mercury) / >20,000 hours (LED) |

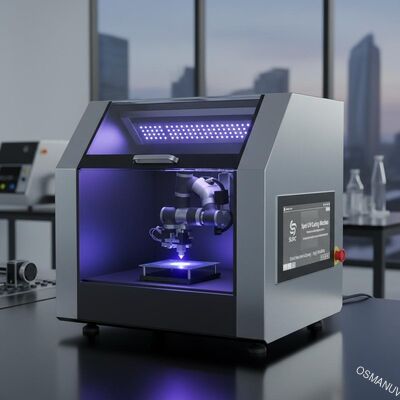

| Operation Mode | Benchtop / Robotic Arm Integration (Customizable) |
4. Application
Best suited for LOCA (Liquid Optically Clear Adhesive) curing for displays, micro-encapsulation, and precise adhesive bonding in MEMS and camera modules.
5. Customization
We provide extensive customization on the spot size, UV intensity profile, and integration with XYZ stages or robotic arms for fully automated precision curing.
6. Feature
-
Pinpoint accuracy for selective area curing.
-
Adjustable intensity and timer for precise process control.
-
Compact and ergonomic design.
-
Ideal for R&D, low-volume production, and repair work.
7. Support and Services
Our support includes on-site calibration, application testing, and priority technical assistance.
8. Packing and Shipping
The unit is packed in a durable foam-insulated box within a wooden crate to prevent transit damage.
9. FAQ
-
Q: What is the minimum spot size achievable?
-
A: With specialized light guides, we can achieve a spot as small as 1mm, customized for your application.
-
-
Q: Can it be used in a cleanroom environment?
-
A: Yes, we offer customized cleanroom-compatible models.
-
