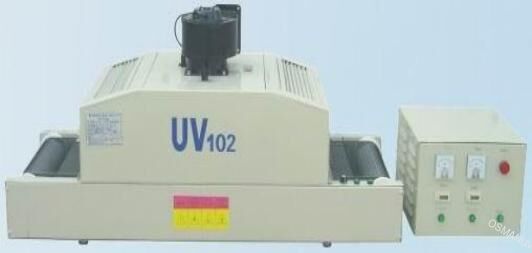

Energy Efficient 38 Percent UV Reflective Curing System for Plastic Varnish Drying
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | OSMANUV |
| Chứng nhận: | ISO9001 |
| Số mô hình: | OSM-UV-102T |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | negotiable |
| chi tiết đóng gói: | Bao bì gỗ |
| Thời gian giao hàng: | 30 ngày |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | Đàm phán |
|
Thông tin chi tiết |
|||
| Điện áp: | 220V/50Hz | Quyền lực: | 2,15kw |
|---|---|---|---|
| Tình trạng: | MỚI | Kích thước (L * W * H): | Kích thước tùy chỉnh, dài 1220mm × rộng 470mm × cao 460mm |
| Chiều cao đầu vào hoặc đầu ra: | 130mm | Tốc độ lớp phủ: | có thể điều chỉnh, 1-10m/phút |
| Chiều rộng băng tải: | 300 mm | Bảo hành: | 1 năm |
| Làm nổi bật: | UV curing machine for plastic varnish,energy efficient UV curing system,38 percent UV reflective dryer |
||
Mô tả sản phẩm
Energy Efficient 38 Percent UV Reflective Curing System for Plastic Varnish Drying
Product Description:
This UV curing system is designed with energy efficiency as a core principle. Its high-precision German Alanod reflector delivers a 38% increase in UV light utilization compared to standard systems, directly translating to lower energy costs and reduced environmental impact. It ensures rapid and complete drying of clear varnishes and topcoats on plastic surfaces, resulting in a high-gloss, durable finish that resects yellowing.
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Key Advantage | 38% Higher UV Efficiency (Alanod Reflector) |
| 2 | UV Lamps | 2 x 1KW Mercury Lamps |
| 3 | Lamp Life | 800-1000 Hours (Guaranteed) |
| 4 | Conveyor System | Teflon Mesh Belt (1-10 m/min) |
| 5 | Housing Material | 1.5mm Cold-Rolled Steel (Spray-Baked) |
| 6 | Electrical Safety | Leakage Breaker, Fuse (International Standards) |
Application:
Perfect for achieving a high-quality, clear coat finish on ABS, PC, PMMA plastic panels, cosmetic cases, and automotive interior trims.
Customization:
The machine's cooling system and electrical configuration can be customized to suit specific operational environments and power supply stability requirements.
Feature:
-
Significant reduction in electricity consumption for curing.
-
Enhanced UV uniformity prevents under-cured or over-cured spots.
-
Durable Teflon conveyor belt withstands high temperatures and UV exposure.
-
Complies with international electrical safety standards.
Support and Services:
-
Comprehensive warranty and energy efficiency performance support.
-
Guidance on lamp replacement schedules to maintain peak efficiency.
-
Preventive maintenance checklists provided.
Packing and Shipping:
Robust export packaging ensures safe transit. Standard lead time is 15 days. FOB Terms.
FAQ:
-
Q: How does the 38% efficiency saving calculate in real-world terms?
A: It means you can often achieve the same curing result at a lower power setting or a faster line speed, directly reducing your kWh consumption per part by a significant margin. -
Q: Is the reflective sheet easy to clean or replace?
A: Yes, the reflector is designed for easy access and maintenance. Keeping it clean is part of the standard maintenance to sustain the high-efficiency performance, and it is a customizable component that can be replaced if needed.
