Premium Soft-Touch Excimer Coating Line for Wood-Based Panels – Advanced Surface Finishing
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | OSMANUV |
| Chứng nhận: | ISO9001 |
| Số mô hình: | OSM-ZFZ-600 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | Có thể thương lượng |
| chi tiết đóng gói: | HỘP GỖ |
| Thời gian giao hàng: | 30 ~ 40 ngày |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | đàm phán |
|
Thông tin chi tiết |
|||
| Đèn UV: | Tổng cộng 1 chiếc | Ứng dụng: | Sơn bề mặt khô |
|---|---|---|---|
| Bước sóng: | 365nm | Tính năng an toàn: | Khiên UV, dừng khẩn cấp |
| Kích thước máy Uv: | 1300×420×750mm | đường kính cao su: | 100mm |
| Loại máy: | Máy phủ UV | Khu vực phủ: | Khu vực rộng lớn |
| Làm nổi bật: | soft-touch excimer coating line,UV curing machine for wood panels,excimer coating surface finishing machine |
||
Mô tả sản phẩm

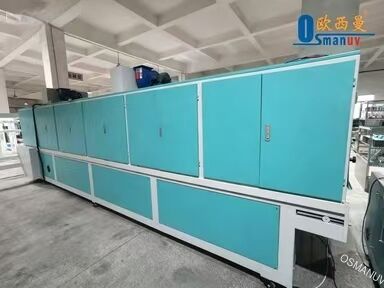

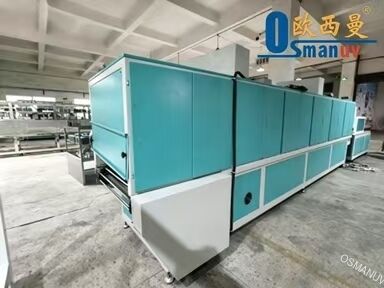

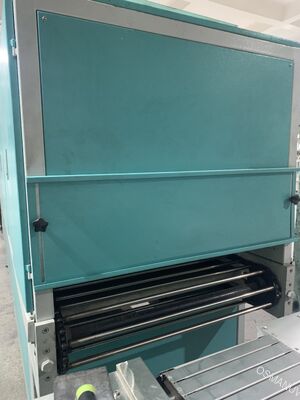

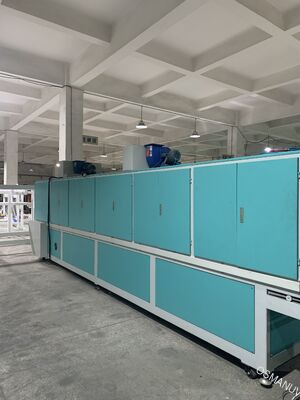

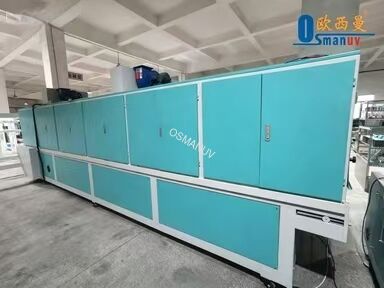

Premium Soft-Touch Excimer Coating Line for Wood-Based Panels – Advanced Surface Finishing
Composition of Production Line
-

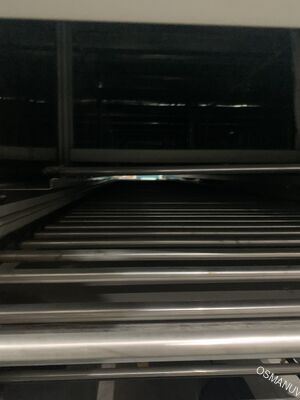

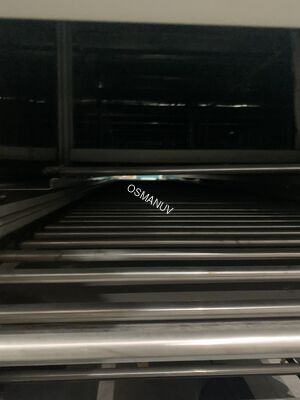

Dual-belt infeed conveyor
-
Dust extractor & ionizing bar
-
Precision reverse roll coater (base coat)
-
Excimer curing chamber with 4 lamps
-
Nitrogen purging system
-
Intermediate LED curing station
-
Topcoat curtain coater
-
Finishing UV tunnel
-
Automatic quality inspection (camera)
-
Stacking lift table
Product Description
A premium-grade excimer line delivering a consistent, elegant skin-feel finish on particleboard, MDF, and HDF panels. The advanced 172nm excimer technology produces a super-matte, soft surface that resists fingerprints, water stains, and light abrasion – ideal for luxury furniture brands seeking a “velvet touch” aesthetic.
Technical Parameters (Table)
| Parameter | Specification |
|---|---|
| Panel width range | 600–1350 mm (customizable) |
| Panel thickness | 2–40 mm |
| Maximum line speed | 20 m/min (customizable up to 30 m/min) |
| Excimer lamp wavelength | 172 nm (others on request) |
| Gloss level achievable | 0.5–5 GU (adjustable) |
| Coating thickness precision | ±1.5 μm |
| Nitrogen consumption | 8–12 Nm³/h (recyclable) |
| Installed power | 95 kW |
| Compressed air | 6–8 bar, dry air |
Application
-
High-gloss replacement (matte skin-feel furniture)
-
Bathroom vanities (moisture-resistant requirement)
-
Children’s furniture (safe, no VOCs)
-
Hotel room panels & headboards
-
Acoustic wall panels requiring soft surface
Customization
Fully customizable from panel width (up to 2100mm) to coating material (water-based, UV, or PU). We also offer customized lamp layout, automation level (semi/fully automatic), and integration with existing sanding or printing machines. Custom colors for machine body available.
Feature
-
Zero solvent emission – environmentally friendly
-
No orange peel effect – perfect flatness thanks to excimer quenching
-
Instant curing – no post-production waiting time
-
Low heat input – suitable for heat-sensitive substrates
-
Easy networking with MES/ERP systems (customizable protocol)
Support and Services
-
Factory acceptance test (FAT) at our facility
-
On-site commissioning & calibration
-
18-month warranty (extendable)
-
Lifetime online technical documentation
-
Custom training program for operators & maintenance staff
Packing and Shipping
-
Anti-moisture vacuum packing for electronic parts
-
Steel frame with shrink wrapping for main body
-
Delivery: EXW, FOB, or CIF as required
-
Shipping time: 30–50 days (customizable urgent order)
FAQ
Q: Can this line handle curved or profiled panels?
A: For curved panels we offer a customizable robotic excimer unit – please consult.
Q: Is the skin effect resistant to yellowing?
A: Yes, the excimer layer contains no photoinitiators, so it does not yellow under sunlight.
Q: What coating viscosity is compatible?
A: 50–500 cps; we can customize the coating applicator for high-viscosity materials.
