Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | OSMANUV |
| Chứng nhận: | ISO9001 |
| Số mô hình: | Đặc điểm kỹ thuật |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | Có thể thương lượng |
| chi tiết đóng gói: | Bao bì gỗ |
| Thời gian giao hàng: | 30-45 ngày |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | đàm phán |
|
Thông tin chi tiết |
|||
| Chiều cao in: | 2-3mm | Nguồn điện: | 220V/380V, 50/60Hz |
|---|---|---|---|
| độ dày gia công: | 200mm | Thể tích phun: | 0-1000ml/phút |
| Vật liệu phủ: | Bột, chất lỏng, v.v. | Tốc độ truyền tải: | 1-10m/phút |
| Độ phân giải Printhead: | 1200DPI | vật liệu phủ: | Sơn, véc ni, keo |
Mô tả sản phẩm

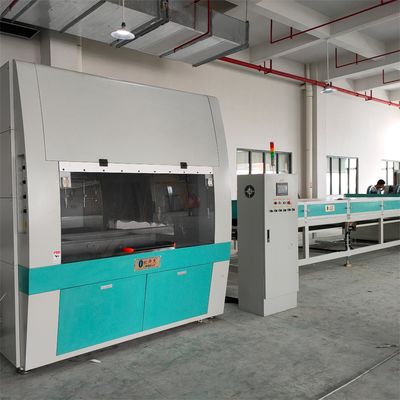

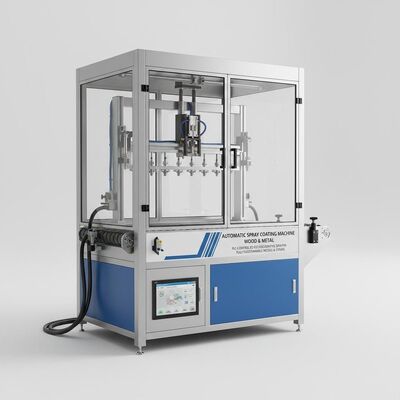

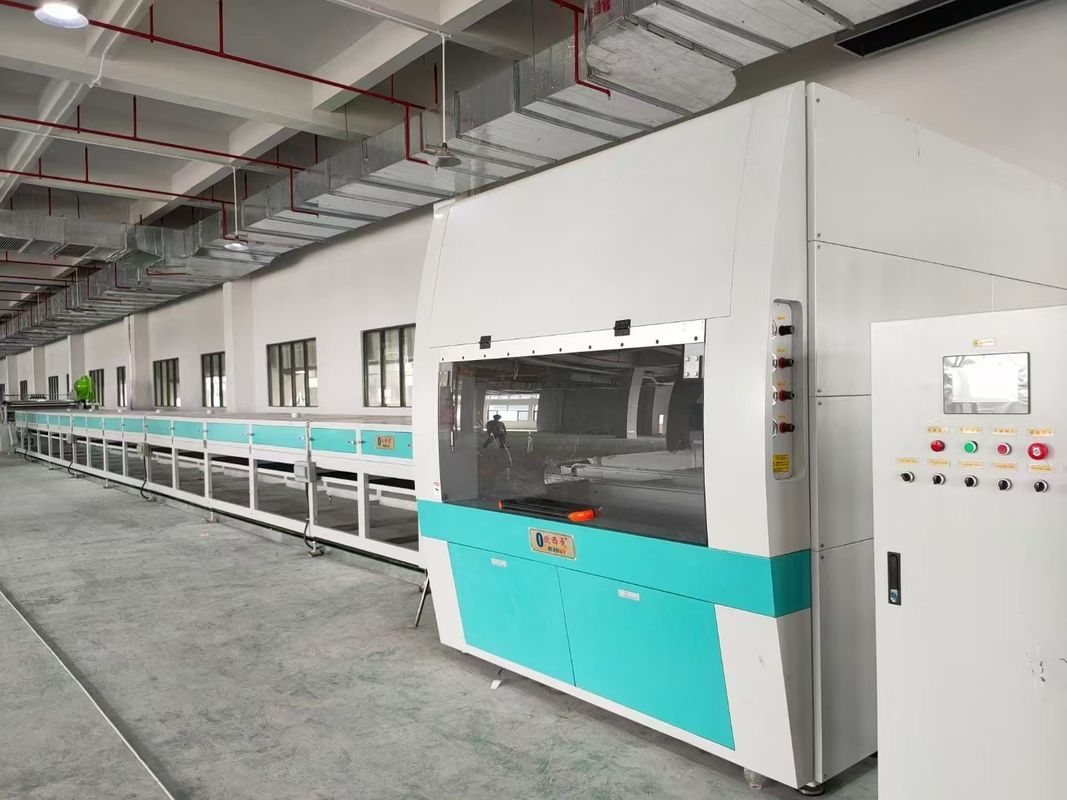

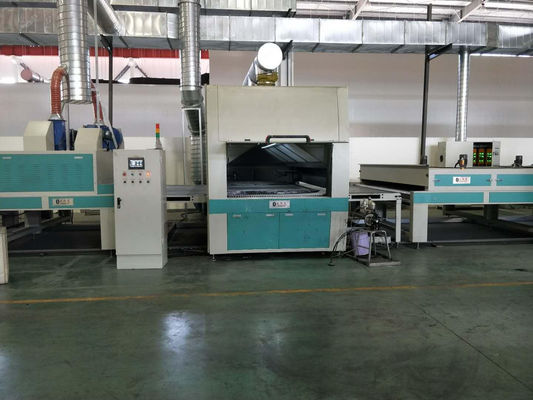

Automatic Spray Coating Machine for Wood & Metal
PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke
Product Overview

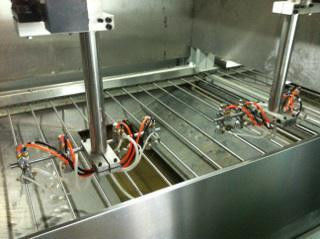

The Spray Coating Machine (also called automatic spray painter) applies a uniform layer of paint, varnish, water-based coating, or other liquid finishes onto flat or shaped products. It uses reciprocating spray guns or robotics to cover the surface efficiently.
The machine is fully customizable - number of guns, spray pattern, stroke length, conveyor speed, and drying method - to fit furniture, metal parts, plastic, and automotive component painting.
Technical Specifications
| Parameter | Standard Value | Customizable Range |
|---|---|---|
| Max product width | 1300 mm | Customizable up to 2600 mm |
| Max product height | 150 mm | Customizable up to 500 mm |
| Conveyor speed | 0 - 15 m/min | Customizable up to 30 m/min |
| Reciprocating stroke | 0 - 1400 mm (adjustable) | Customizable up to 2500 mm |
| Number of spray guns | 2 (standard) | 1 - 8 guns customizable |
| Spray gun type | HVLP (high volume low pressure) | Airless / Air-assisted / Electrostatic / customizable brand |
| Spray width per gun | 200 - 400 mm | Customizable via nozzle/air cap |
| Transfer efficiency | 70 - 85% (HVLP) | Customizable with electrostatic (up to 95%) |
| Coating thickness | 15 - 150 µm (wet) | Customizable down to 5 µm |
| Overspray recovery | Dry filter (standard) | Water curtain / Cyclone + bag filter customizable |
| Drying method | Hot air (2 zones) | IR / UV / Ambient - customizable zone length |
| Power supply | 380V / 50Hz (3-phase) | 220V - 480V, 50/60Hz customizable |
Applications
- Woodworking - Furniture panels, doors, window frames, flooring
- Metal finishing - Steel cabinets, automotive parts, aluminum profiles
- Plastic components - Electronic housings, appliance parts
- Glass & ceramics - Decorative coatings, functional films
- Customizable for: coils, pipes, irregular 3D objects (with rotary attachment)
Customization Options
All models support full customization:
- Gun traverse method (reciprocating arm / XY gantry / 6-axis robot)
- Paint supply type (gravity, siphon, pressure tank, or circulating system)
- Flameproof electricals for solvent-based paints
- Automatic gun triggering (detects product start/end via photoelectric sensor)
- Color change system (manual or automatic flushing)
- Rapid mold/part changeover kit
- CE / ATEX / NFPA certification - customizable
Key Features
- Uniform coating coverage with adjustable overlap (25 - 75%)
- Reduced overspray thanks to optimized gun angle & air settings
- Automatic stroke width adjustment to match product width
- Multi-product recipe storage (100+ programs on HMI)
- Removable booth panels for easy cleaning
- Energy-saving circulation of drying air (optional heat recovery)
Support and Services
- 18-month warranty (extendable)
- Remote support via WhatsApp, Teams, or video call
- Spare parts (guns, nozzles, filters, pumps) stocked for 5+ years
- On-site installation, calibration & operator training (for industrial orders)
- Free feasibility testing: send your part and coating - we return coated sample + report
Packing and Shipping
- Packing: Heavy-duty plywood crate + foam padding + VCI anti-rust paper
- Sensitive parts (guns, controllers) packed separately with bubble wrap
- Shipping: FOB (Shanghai / Guangzhou) or CIF by sea, air, or rail
- Lead time: 20 - 60 days based on customization level
Frequently Asked Questions
Q: Can I use water-based and solvent-based paint on the same machine?
A: Yes, but cleaning procedures differ. We can customize a quick-flush circulation system and explosion-proof option for solvents.
Q: How is overspray recovered and disposed of?
A: Standard dry filter (easy to replace). For high production, we customize water curtain or cyclone + bag filter for paint sludge collection.
Q: Does the machine come with a drying system?
A: Basic models do not include drying. We can customize with IR, hot air, or UV drying tunnels matched to your coating chemistry.
